Kadee Modellbahn
Kadee 19 HO Scale NEM 362 European-Style Couplers - Long
HO-Scale
Package Includes:
- (2) Pair #19 Couplers (Aassembled) - Long Underset
- (2) #622 Knuckle Springs

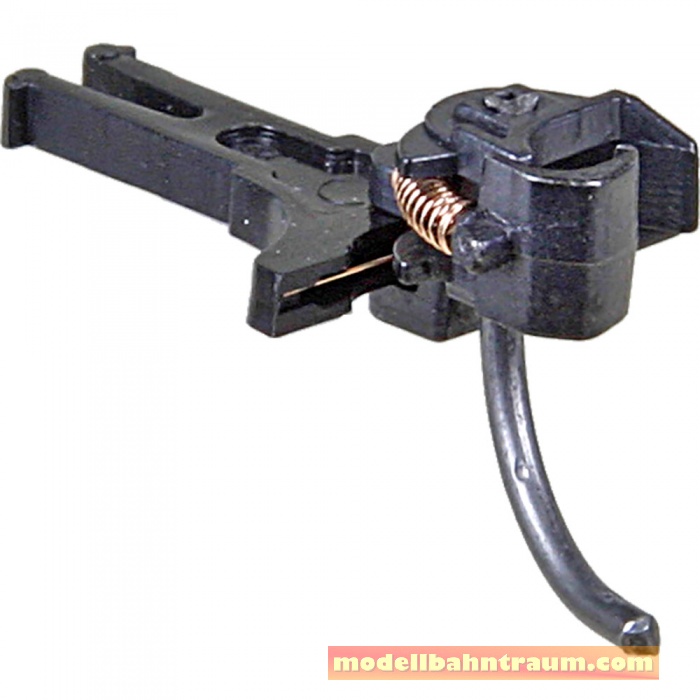

#19 Coupler Features:
| Material |
- Metal Knuckle, Plastic Coupler Swallow-tail Shank |
| Length |
- Long (10.67mm , .420 inch , 27/64") (pulling face to the dovetail sholder) |
| Coupler Offset |
- Underset |
| Knuckle Spring |
- #622 |
| Centering System |
- NEM European Style Coupler |
| Head |
- Standard Head |

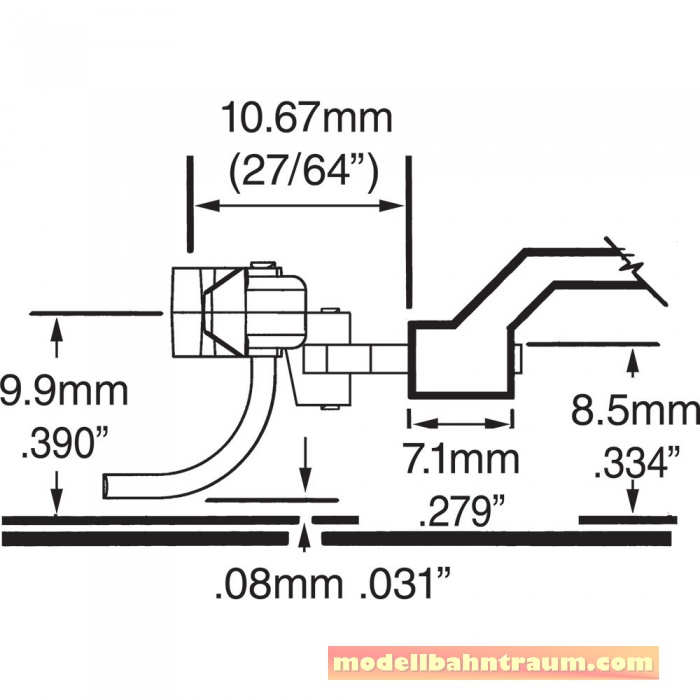

Mounting Specifications:
| Mounting Height |
- 10.67mm , .420" |
| Centerline |
- 9.9mm , .390" |
| Trip Pin Height |
- .08mm , .031" |
|
